40W Laser Engraver with Integrated Enclosure

Chuangquan Electronics Co., Ltd. offers the 40W Laser Engraver with Integrated Enclosure — a quality solution from a professional China manufacturer, factory, and supplier. This 2024 Class 1 certified machine features 40W optical power, 600mm/s cutting speed, flame detector, full metal enclosure, camera positioning, and drawer debris system. It cuts 20mm wood, 30mm acrylic, and 0.15mm stainless steel. Install in 10 minutes. Trusted by users across 30+ countries.

High-output laser system for production environments

This equipment (2024 Class 1 Newest Creality Falcon2 Pro integrated enclosure version) delivers native 40W laser output with machine power up to 240,000mW. The integrated design significantly improves workflow safety and beam stability. Designed for professional single operators and small production studios, it delivers repeatable cutting and engraving results.

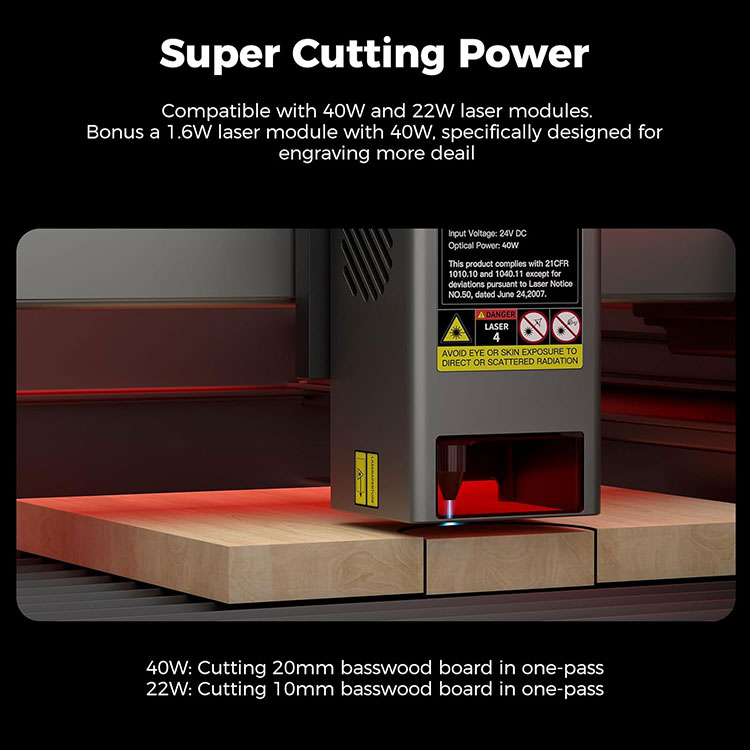

Native 40W output & 600mm/s speed – One‑time cutting capacity: 20mm basswood board, 30mm black acrylic board, and 0.15mm stainless steel plate. The high-speed performance (600mm/s) doubles the batch cutting efficiency compared to mainstream alternatives. Intelligent dual adjustable beams – Two adjustable beam paths optimize energy distribution, improving edge quality on dense materials like hardwood and acrylic. Mass production ready – The combination of 40W actual optical power and rapid acceleration allows consistent batch output without quality degradation.

Note: The 40W laser engraver with integrated enclosure eliminates external safety modifications and reduces setup complexity – fully operational right out of the box.

Built-in camera and intelligent focus workflow

Time spent on alignment and manual distance measuring is eliminated. The integrated camera sits above the center of the protective shield and provides live preview through USB connection. This allows precise material positioning and batch layout preview before firing the laser.

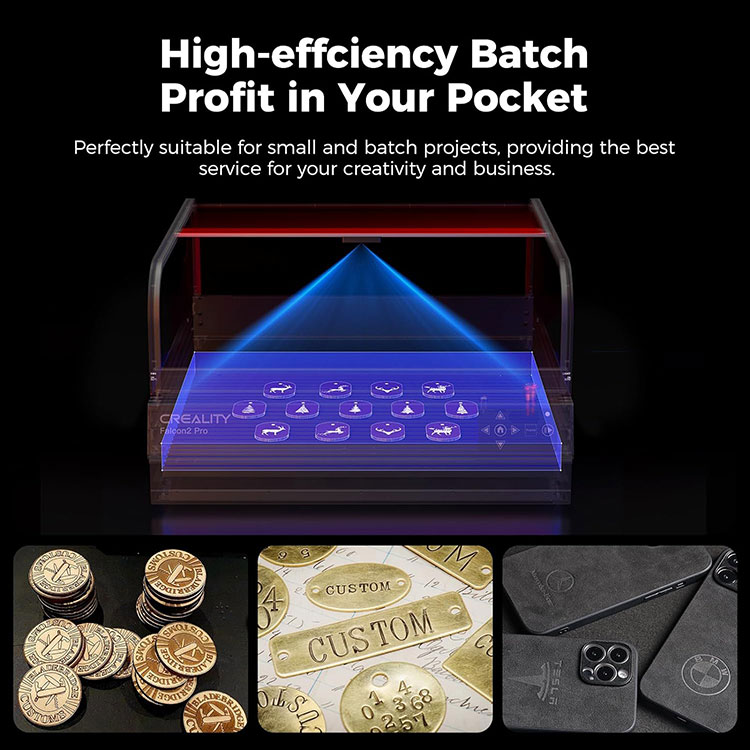

Large‑space batch auto‑positioning – The built‑in camera captures the work area; the software overlays the design preview onto the actual material image. One‑key intelligent focus – Automatic distance measurement without manual probes. The system detects the surface and sets correct focal length within seconds. Higher creation success rate – Visual verification reduces wasted materials and failed jobs, especially important for multiple identical parts or nested arrangements.

Users no longer measure offsets between different workpieces manually: the camera system memorizes positions, making repeated jobs extremely efficient.

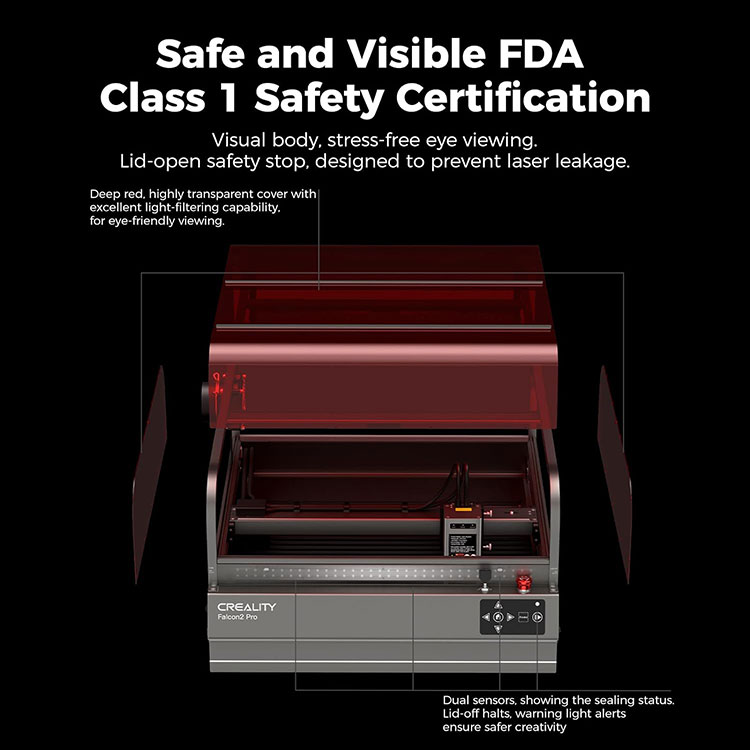

Class 1 certified safety and fully enclosed structure

The equipment is certified as Class 1 laser product, meaning it is safe under normal operation without additional protective gear. Five integrated safety mechanisms meet workshop and studio compliance requirements.

Flame detector – Instantly shuts down the laser upon detecting abnormal combustion. Dual wire limit switch – Prevents gantry overtravel, protecting mechanical components and maintaining calibration. Safety lock and emergency stop button – Physical lock prevents unauthorized use, while the emergency stop provides immediate power cut.
Laser detection cover – Automatically pauses emission when the cover is opened, ensuring operator safety.
Full metal frame + fireproof fiber cover – The transparent yet fully enclosed design isolates smoke, dust, and noise; the top cover is transparent for visibility but fire‑resistant to contain potential flare‑ups.

Compared to open-frame diode lasers, this 40W laser engraver with integrated enclosure allows work in shared spaces or small studios with drastically reduced airborne particulates and stray radiation risk.

Safety feature quick reference

Safety component	Function
Flame detector	Automatic laser shutoff upon flame detection
Dual wire limit switch	Prevents axis overrun, extends motor life
Safety lock (key)	Mechanical access control, prevents unintended start
Emergency stop button	Instant power cut, large red button
Laser detection cover	Interlock switch stops emission when lid opens
Fireproof fiber cover and metal frame	Smoke/dust isolation, flame retardant

Quick installation and debris management system

Factory assembly reaches about 80% complete. Upon delivery, the rest of the installation takes 10 minutes or less (including calibration). This reduces downtime and gets the laser engraver operational immediately.

Drawer‑style debris tray – The bottom drawer collects all cut residues, small offcuts, and dust. After a job, simply pull out the drawer and empty the waste.

Less frequent cleaning – The enclosed design keeps debris contained, and the drawer can be emptied without stopping the machine for deep cleaning every day.

Ideal for small studios – Minimal maintenance overhead and easy waste disposal.

No special tools needed – the user manual provides step‑by‑step illustrations, and the mechanical assembly is straightforward. This product is built for practicality, not decorative complexity.

Frequently asked questions (based on real workshop use)

Q: Does the enclosed housing completely eliminate fumes during cutting?
A: It significantly contains smoke and particulates, but for materials like acrylic or wood, external ventilation or an inline fan is recommended for odor control. The fireproof fiber cover and metal frame isolate most dust and noise, making it suitable for indoor studio use with proper exhaust.

Q: How does the built‑in camera handle reflective materials?
A: The camera uses standard optical preview; for shiny metal surfaces, you can place a matte tape or apply a removable marking aid. The positioning function remains accurate because the camera relies on visual patterns, not laser reflection.

Q: Can the laser engrave round or cylindrical objects?
A: The standard configuration is optimized for flat workpieces, but the fully openable front door and removable floor plate allow adding a rotary attachment (not included). The controller supports rotary axis upgrade for bottles and mugs.

Q: What software is compatible with Falcon2 Pro?
A: The equipment runs on LightBurn (most recommended) and Creality's own Laser Engraving software. Both provide camera preview, layer control, and batch alignment tools. G-code compatibility is also supported.

Q: Are replacement parts and lens cleaning guides available?
A: Yes, the manufacturer provides standard lens cleaning kits, replacement laser modules, and belts. The drawer design also simplifies access to internal optics for routine maintenance.

Q: Can the equipment run continuously for mass production jobs?
A: Yes. With efficient heat dissipation, the 40W laser module can run extended shifts, and the flame detector plus limit switches provide failsafe operation. Many sole traders run daily production cycles without overheating issues.

Engineering excellence and design recognition

The Creality Falcon2 40W model has been named an IDEA Finalist (International Design Excellence Awards). This recognition reflects innovation in integrated safety, user workflow, and mechanical design. The 40W laser engraver with integrated enclosure also complies with Class 1 laser safety regulations, making it one of the few desktop 40W laser engravers with fully integrated safety enclosure out of the box.

Ideal for professional creators, one‑person manufacturing businesses, and R&D workshops.

The integrated enclosure removes the need for DIY housing or external interlock modifications.

Backed by engineering validation in real production environments (batch cutting, daily prototyping).

Workflow integration and daily reliability

From power‑on to production, the steps are reduced to: position material → camera preview → set focus automatically → start cutting. The laser engraver offers these specific operational advantages:

Batch positioning with camera memory – For repeated jobs (e.g., 50 pieces of the same design), the camera stores the reference points, so you only need to place a new sheet and click "start".

Less idle time – 600mm/s speed shortens cutting cycles; the high output power eliminates multiple passes, unlike lower‑power machines.

Onboard controls – One‑key control panel for focus, framing, and start/stop, without relying entirely on software.

This equipment has been tested on materials like 0.15mm stainless steel for marking purposes (business cards, industrial tags) and 30mm acrylic for display stands. The results are repeatable edge quality with minimal kerf.

Maintenance and long‑term reliability

The equipment is built for continuous professional use. Critical components and their maintenance schedule:

Lens cleaning – recommended every 20–30 hours of heavy cutting; access through the top cover without full disassembly.

Limit switches and rails – dust from wood/acrylic is minimized due to the enclosed drawer, but periodic rail lubrication is suggested every 3 months.

Firmware updates – available via manufacturer portal, ensuring improved material libraries and safety logic.

Drawer debris management – empty after each large batch; no need to vacuum inside the enclosure frequently.

Furthermore, the integrated enclosure protects the optics from ambient dust, extending the lifespan of the 40W laser module. Compared to open 40W systems, this product significantly reduces cleaning frequency and component contamination.

Note: The 40W laser engraver with integrated enclosure is particularly suitable for shared workspaces, schools, and small businesses that require CE/FCC/Class 1 compliance without external modifications.

Trusted supply chain and OEM background

This high‑performance laser engraver is distributed and supported by Shenzhen Chuangquan Electronics Co., Ltd. – established in 2011, with deep expertise in computer peripherals, OEM partnerships (including Redragon and E-YOOSO product lines), and advanced manufacturing integration. The same engineering quality applied to the Falcon2 Pro laser equipment aligns with Chuangquan's commitment to precision, safety, and after‑sales service.

Chuangquan's product map covers over 30 countries across North America, Europe, South Africa, Asia, and the Middle East. Their international standard packaging and multi‑language technical support ensure the equipment arrives safely and is operational globally. Factory visits are open for qualified partners and professionals, reinforcing supply chain transparency.

Why this matters for users: Chuangquan's long‑standing cooperation with global manufacturers provides consistent quality control, genuine spare parts availability, and responsive technical documentation. The Falcon2 Pro 40W laser system is backed by a company that values professionalism and follow‑up service — essential for production environments where downtime equates to lost revenue.

For any technical specification validation, safety documentation, or bulk inquiries, the Chuangquan team provides direct engineering support. This commitment to reliability makes the equipment a dependable addition to any professional studio or workshop.
