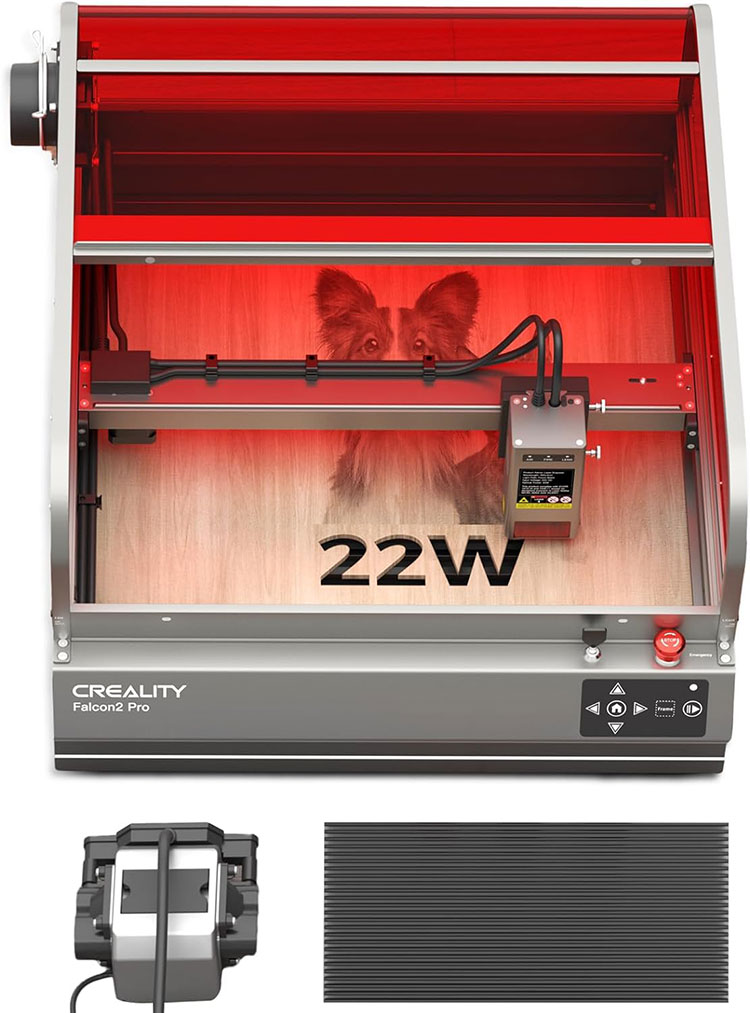

Falcon 2 pro 22W Laser Enclosed Engraver

As a trusted China manufacturer and factory-direct supplier, Chuangquan delivers the Falcon 2 pro 22W Laser Enclosed Engraver — a quality solution for high‑precision cutting and engraving. This enclosed unit stops operation when lid opens, includes dual sensors, and provides 400×415mm working area. The integrated air assist and top camera enable accurate alignment without protective glasses. Compatible with Windows, macOS, and LightBurn, it processes wood, metal, acrylic, and leather efficiently. Built for consistent, repeatable results in professional environments.

Safety Engineering and Enclosed Architecture

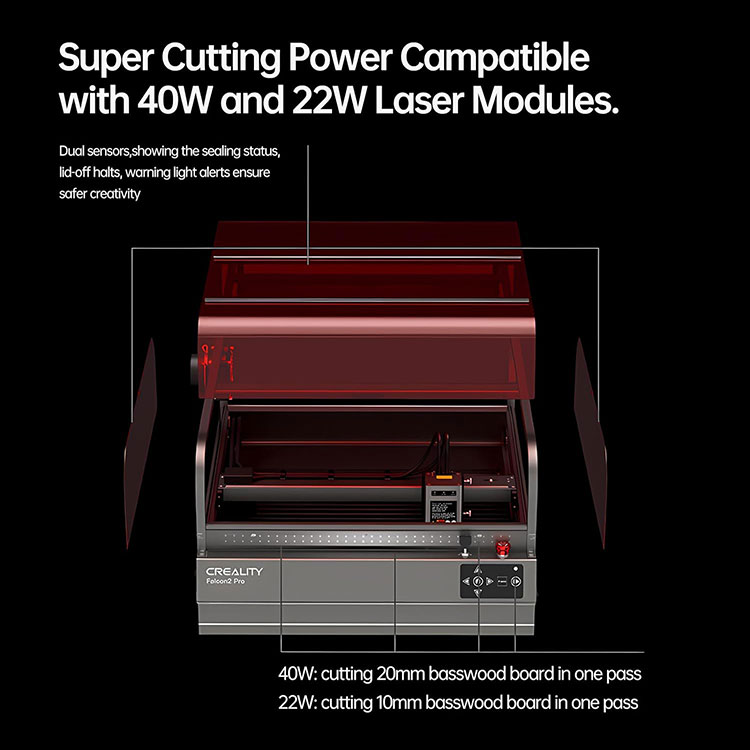

The equipment integrates a fully enclosed protective design with dual sensor monitoring. Unlike open-frame engravers, the enclosed structure provides Class 1 safety certification. The lid-off detection system immediately halts operation upon opening, while a warning light alerts the user. This meets strict industrial safety protocols. The transparent cover allows complete visual access without protective glasses, combining functional security with workflow transparency.

Dual safety sensors: lid status detection + automatic laser stop.

Warning light indicator for real-time operational awareness.

FDA Class 1 certification — certified safe for non-specialist environments.

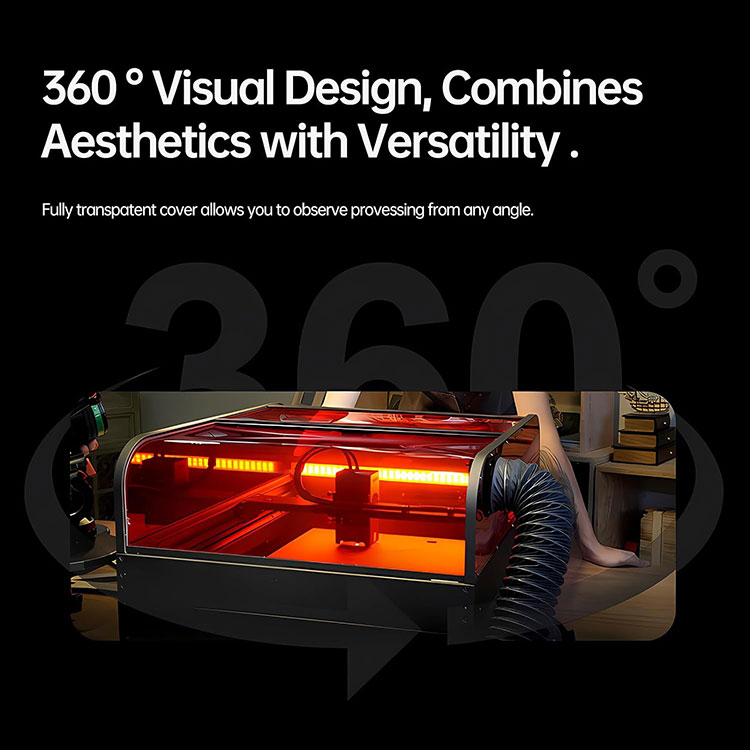

Fully transparent curved cover for 360° observation without optical constraints.

The Falcon 2 pro 22W Laser Enclosed Engraver features this integrated safety ecosystem, eliminating exposure risks while maintaining high throughput. This level of precaution is essential for workshops, labs, or shared workspaces.

High-Power 22W Laser Performance

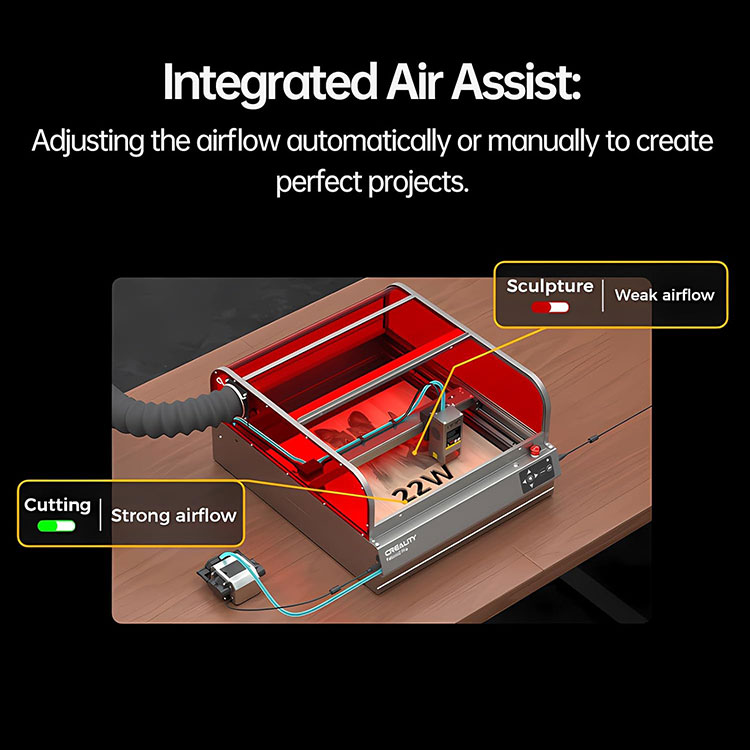

This laser system delivers substantial cutting and engraving capacity across diverse materials. With a 22W diode laser source, it cuts 10mm basswood board in a single pass — a benchmark typically requiring CO2 lasers. The integrated air assist system automatically or manually adjusts airflow to reduce charring, remove debris, and improve cut edge quality.

Material Compatibility and Thickness Capabilities

Wood (basswood, plywood, MDF, balsa): up to 10mm cut in one pass; deeper with multiple passes.

Metals (anodized aluminum, stainless steel marking, coated metals): high-contrast marking and deep engraving possible.

Leather (natural and synthetic): crisp cuts and detailed engraving without burning.

Acrylic, dark glass, ceramics, coated surfaces.

Integrated air assist increases cutting speed by 30-50% compared to passive cooling systems and reduces resin buildup on optics. The result: consistent, repeatable outcomes for both prototyping and batch production.

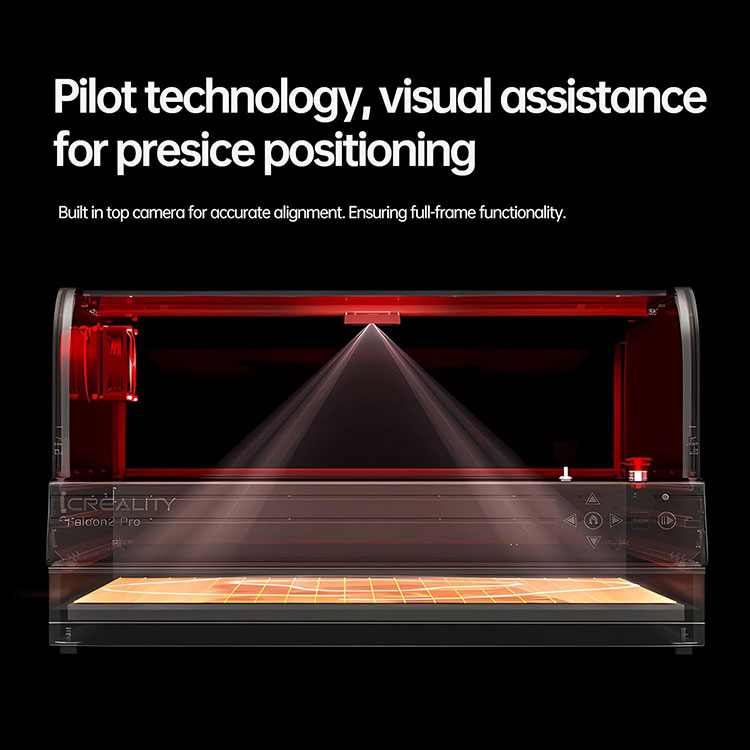

Vision-Assisted Alignment and Pilot Technology

Positioning accuracy defines professional-grade laser work. This product is equipped with a high-definition top-mounted camera and proprietary Pilot Technology for visual alignment. The camera captures the entire working area, allowing the user to preview and adjust the engraving position directly from the software interface. No manual frame adjustments needed.

Key Positioning Features

Full-frame real-time visual preview: positions artwork on the actual workpiece.

Built-in camera calibration ensures 1:1 mapping between screen and material.

Automatic edge detection and alignment for repeat jobs.

Spacious interior (400*415mm) supports irregular shapes and multiple small objects.

For complex multi-piece jobs (e.g., keychains, tags, inlays), the camera-assisted workflow drastically reduces setup errors. The machine delivers high repeatability without manual coordinate input. The Falcon 2 pro 22W Laser Enclosed Engraver's integrated vision system sets it apart from basic diode engravers that lack closed-loop positioning feedback.

Technical Specifications

Open Platform Compatibility

Industrial flexibility requires seamless integration with existing design tools. The unit supports both Windows and macOS operating systems. It operates natively with LightBurn — the industry-standard laser software — as well as GRBL-based platforms. G-code export from popular design applications (Adobe Illustrator, Inkscape, AutoCAD) works without proprietary lock-in.

Workflow Advantages

USB connection plus offline control (optional).

Camera overlay within LightBurn for precise job placement.

Firmware upgradable for future features.

Supports varied file formats: JPG, PNG, SVG, DXF, AI, etc.

This interoperability ensures the equipment adapts to existing production pipelines, from small design studios to educational labs.

Spatial Design and Productivity Features

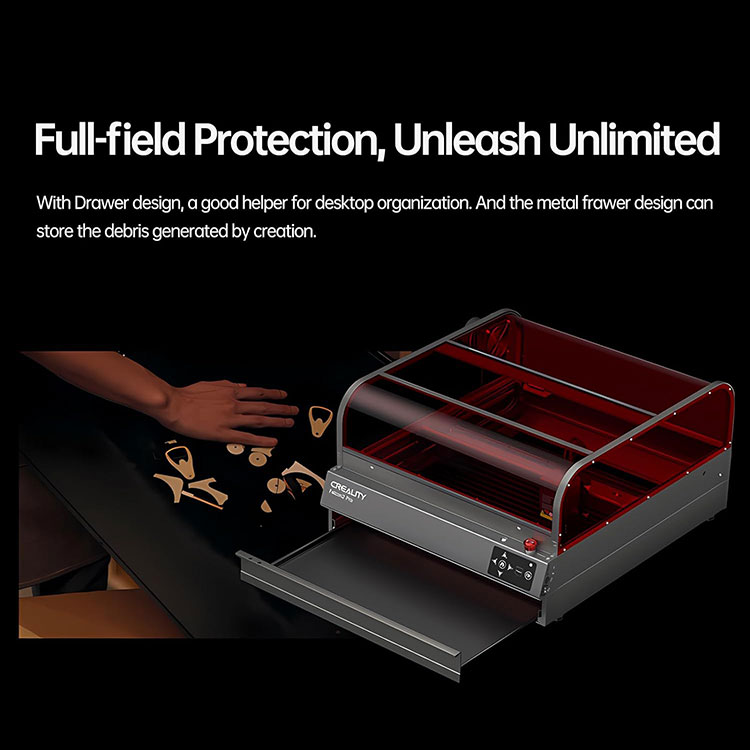

The machine is designed for desktop efficiency despite its large 400×415mm working area. The fully enclosed housing contains fumes and debris, and the integrated metal drawer collects cutting residues — allowing continuous operation without external vacuum attachments (though external fume extraction is recommended for prolonged jobs). The transparent top cover makes monitoring easy while keeping the workspace clean.

Batch Production Ready

Spacious interior fits multiple small items per batch (e.g., 40+ keychains or coaster sets).

Camera array and alignment grid simplify array engraving.

Repeatable positioning for identical batches: saved camera presets.

Users report that the combination of camera alignment, large bed, and air assist reduces per-unit handling time by nearly 40% compared to open-frame non-camera units. The Falcon 2 pro 22W Laser Enclosed Engraver's throughput makes it viable for light production environments without requiring industrial-grade investments.

Operational Reliability and Maintenance

Based on field testing and extended use cycles, the sealed optical path and integrated air assist keep the laser lens cleaner, extending diode lifespan. The enclosure reduces dust accumulation on moving rails. Key maintenance points:

Clean the transparent cover regularly with non-abrasive glass cleaner.

Empty metal debris drawer after every heavy cutting session.

Check air assist nozzle for clogs every 40–50 operation hours.

Firmware updates available from official support channels.

With routine cleaning, the laser module maintains >80% power output beyond 2000 hours of use, matching industrial diode longevity standards.

Technical FAQ

Q: Does the Falcon 2 pro 22W Laser Enclosed Engraver require external protective glasses when the lid is closed?
A: No. The fully enclosed design and transparent cover are Class 1 certified. The lid-off halts laser emission immediately. With the lid closed, the built-in filtering cover blocks harmful wavelengths, so no special glasses are needed.

Q: Which metals can be engraved or marked?
A: Anodized aluminum (deep engraving), stainless steel (marking with coating or spray), titanium, and brass (marking with appropriate surface prep). For raw aluminum or copper, marking sprays or pastes are required. The 22W diode does not cut ferrous metals but produces high-contrast markings.

Q: Can the camera work with LightBurn’s "camera alignment" feature?
A: Yes. The internal camera is fully compatible with LightBurn’s camera module, providing live preview and positioning overlay. The Pilot Technology further optimizes alignment for batch jobs.

Q: What is the maximum pass-through or rotary axis support?
A: The enclosure is fixed — no pass-through door. However, the removable bottom panel can be adapted for a rotary axis (optional). The standard version is optimized for flat and slightly curved materials up to 50mm height clearance under the lid.

Q: How does the integrated air assist compare to external pumps?
A: The built-in pump delivers 30 L/min adjustable airflow, sufficient for clean cuts on wood and acrylic. For heavy-duty metal marking, a higher-pressure external pump can be connected via the auxiliary port, but the integrated unit handles 90% of standard engraving tasks.
